61 31 336 Removing and installing/replacing trim for gear selector switch

Necessary preliminary tasks

• Remove CENTRE CONSOLE TRIM .

Release screws (1) and raise trim for gear selector switch (2) slightly. Tightening torque 61 31 3AZ .

Disconnect plug connection underneath and remove trim for gear selector switch (2).

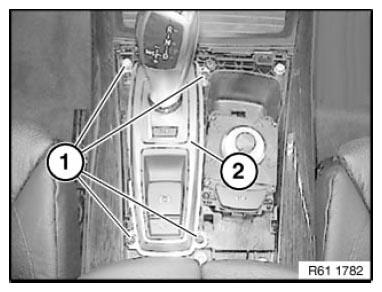

Fig 1: Identifying Gear Selector Switch And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove SWITCH FOR ELECTROMECHANICAL PARKING BRAKE .
