65 12 250 Removing and installing/replacing headphones module
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)
.
NOTE:
Follow INSTRUCTIONS FOR HANDLING OPTICAL FIBRES
.
Necessary preliminary tasks:
- E72 Only: Disconnect Both negative battery cables.
- Disconnect BATTERY NEGATIVE LEAD .
- Remove VIDEO MODULE .

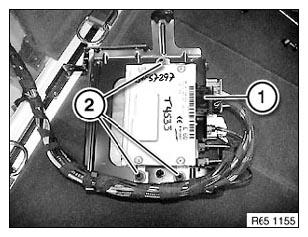

Disconnect plug connection (1).
Release nuts (2) and remove headphones module.
