84 50 060 Removing and installing or replacing Bluetooth aerial

Necessary preliminary tasks

• Remove GEAR SELECTOR SWITCH CARRIER .

Disconnect plug connection (1).

Unfasten screws (2).

Remove Bluetooth aerial (3) from air duct (4).

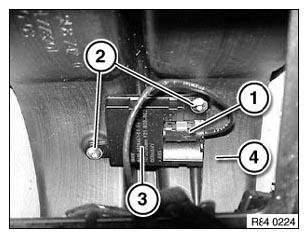

Fig 1: Identifying Air Duct, Bluetooth Aerial, Plug Connection And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
