61 31 342 Removing and installing/renewing gear selector switch

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

Release screws (1). Tightening torque 51 16 2AZ .

Raise gear selector switch carrier (2) and disconnect all plug connections.

Remove gear selector switch carrier (2).

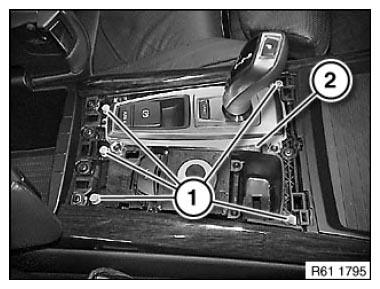

Fig 1: Identifying Gear Selector Switch Carrier And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1). Tightening torque 61 31 4AZ .

Remove gear selector switch (2) from gear selector switch carrier (3).

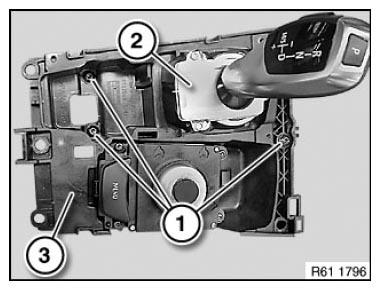

Fig 2: Identifying Gear Selector Switch And Carrier With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
