66 53 020 Removing and installing/replacing reversing camera RFK (after 10/2009)

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks

Unlock holder (1) in direction of arrow.

Remove reversing camera (2).

Replacement

Remove protective film from reversing camera lens.

Fig 1: Removing Reversing Camera Protective Film

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove reversing camera (2).

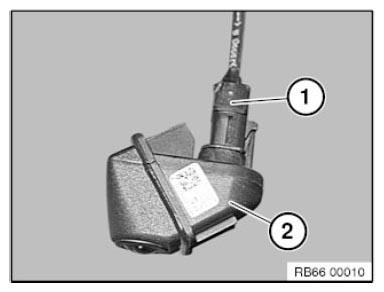

Fig 2: Removing Reversing Camera

Courtesy of BMW OF NORTH AMERICA, INC.

After installation
