61 31 241 Removing and installing/replacing bonnet/hood contact switch

Necessary preliminary tasks

• Remove RIGHT BONNET/HOOD LOCK .

Release screw (1).

Remove bonnet/hood contact switch (2) from bonnet/hood lock (3).

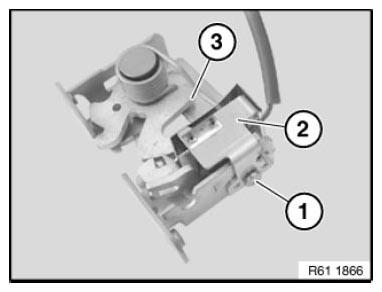

Fig 1: Identifying Bonnet/Hood Contact Switch, Bonnet/Hood Lock And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
