51 23 100 Removing and installing/replacing right engine hood/bonnet lock

Unclip coupling (1) from side panel.

Lever out cover (2) at coupling (1).

Lever Bowden cable (3) out of coupling (1).

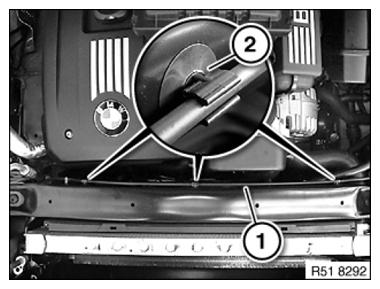

Fig 1: Identifying Side Panel Coupling, Bowden Cable And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip Bowden cable (1) from holder (2).

Fig 2: Identifying Bowden Cable And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration shows A/C lines and module carrier cover removed for purposes of clarity.

Release bolts (1).

Tightening torque 51 23 2AZ .

Feed out hood/bonnet lock (2) through opening (3).

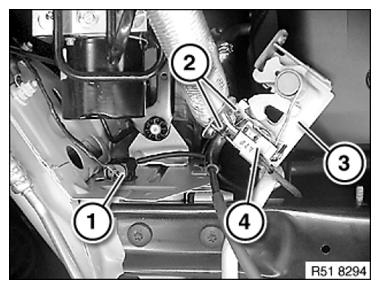

Fig 3: Identifying Hood/Bonnet Lock, Opening And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1), unclip plug and cable from body.

Disengage Bowden cable (1) in direction of arrow from hood/bonnet lock (3).

Replacement

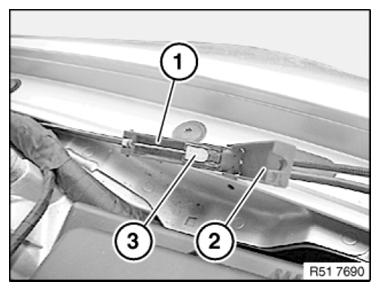

Fig 4: Identifying Hood/Bonnet Lock, Plug Connection, Bowden Cable And Switch

Courtesy of BMW OF NORTH AMERICA, INC.
