67 63 550 Replacing blower motor - 3rd seat row

Necessary preliminary tasks

• Remove complete ELECTRIC AUXILIARY HEATER .

Release screws (1).

Remove blower motor (2) and disconnect associated plug connection.

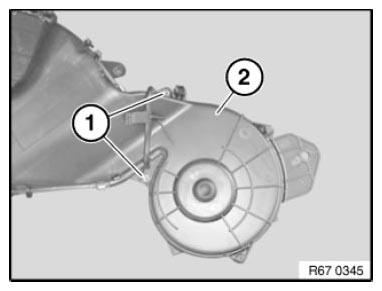

Fig 1: Identifying Blower Motor And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
