51 12 201 Replacing rear left or right bumper side section

Necessary preliminary tasks

Release screws (1).

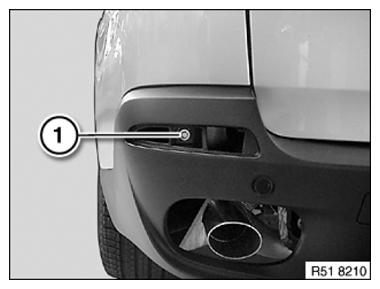

Fig 1: Identifying Bumper Side Section Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Release side bumper trim (3) at catches (4).

Release screw (2) underneath.

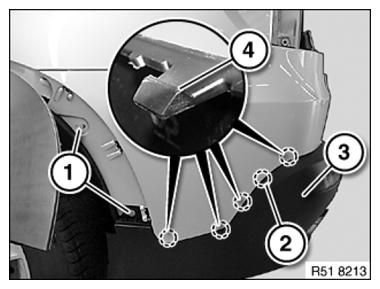

Fig 2: Identifying Bumper Trim, Catches And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip side section (1) from (A) to (B) by pulling.

Installation:

Catches on side section and bracket must not be damaged.

Clip in side section first at rear (B) and then at side (A).

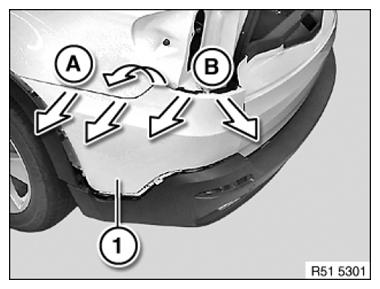

Fig 3: Pulling Bumper Side Section

Courtesy of BMW OF NORTH AMERICA, INC.
