51 47 151 Removing and installing/replacing left luggage compartment wheel arch trim

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM FOR TAIL PANEL AT TOP
Not for optional through-loading facility:
- REMOVE REAR PANEL ON REAR SEAT BACKREST
For optional through-loading facility only :
- Remove SEAT BACK SIDE SECTION

Lever out expander rivets (1).

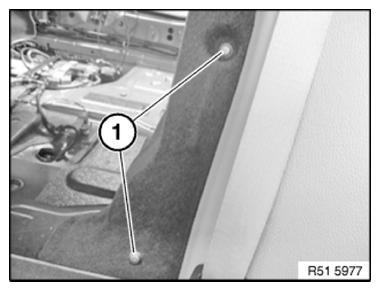

Fig 1: Identifying Luggage Compartment Wheel Arch Trim Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Release expanding rivets (1).

Release screw (2) and remove lashing eye (3).

Remove wheel arch panel (4).

Installation:

Make sure luggage compartment wheel arch panel (4) and rubber seal are correctly seated.

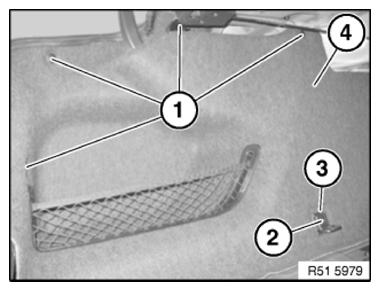

Fig 2: Identifying Expanding Rivets, Lashing Eye And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
