52 26 008 Removing and installing/replacing left/right sides of backrest on rear seat backrest (through-loading)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Pull seat belt to middle and place behind head restraint.

Unclip top backrest side section (1) forwards and pull out upwards (2).

Fig 1: Pulling Seat Belt And Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pull clip (1) towards front out of panel.

Fig 2: Pulling Front Panel Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check clip (1) and locator (2) for damage.

Slide clip (1) into fixture (2) of backrest side section.

Fig 3: Sliding Clip Into Fixture Of Backrest Side Section

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

First thread in guides (1) on the backrest side section in the fixtures of the body.
Then press the backrest side section down, so that the guides (1) seat properly in the fixtures.
Clip backrest side section at top into place.

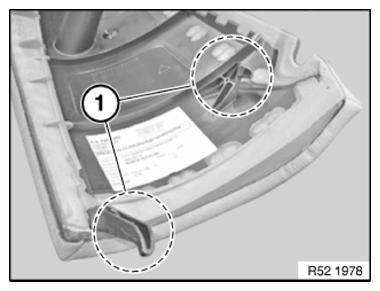

Fig 4: Identifying Guides On Backrest Side Section In Fixtures Of Body
Courtesy of BMW OF NORTH AMERICA, INC.
