51 16 270 Removing and installing/replacing rear console

Necessary preliminary tasks:

E93 only:

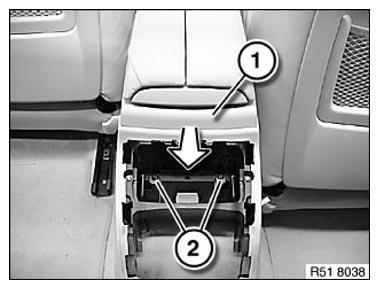

Pull off trim (1) towards rear.

Release screws (2).

Fig 1: Pulling Off Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

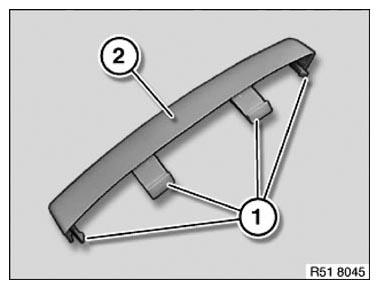

Catches (1) on trim (2) must not be damaged.

Fig 2: Identifying Catches On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

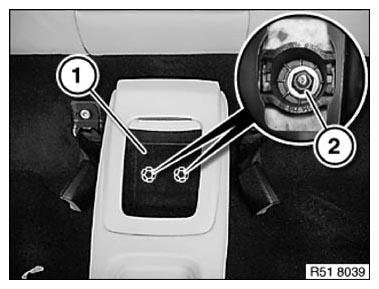

Remove insert (1) and release nuts (2).

Fig 3: Identifying Nuts Of Rear Console

Courtesy of BMW OF NORTH AMERICA, INC.

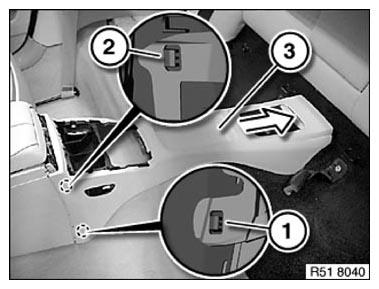

Release catches (1) from bottom left/right.

Release catches (2) from above with screwdriver on left/right and slide rear console (3) towards rear.

Fig 4: Removing Rear Console

Courtesy of BMW OF NORTH AMERICA, INC.

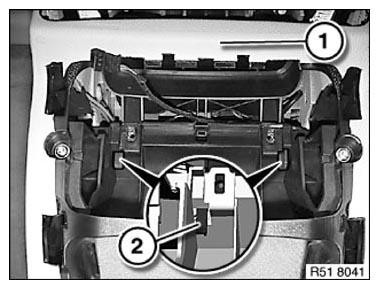

Slide rear console (1) towards rear until guides (2) are fed out.

Installation:

Ensure correct cable routing.

Fig 5: Identifying Rear Console And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

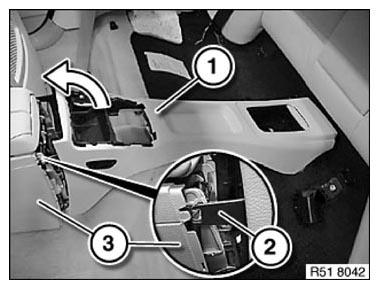

Raise front section of rear console (1) and feed catches (2) on left/right out of storage compartment (3).

Remove rear console (1).

Replacement:

Fig 6: Removing Rear Console

Courtesy of BMW OF NORTH AMERICA, INC.
