51 16 265 Removing and installing/replacing rear section of rear console trim
Special tools required:
Necessary preliminary tasks:
E92 only:
- Remove filler element from rear seat.
E93 only:
- Remove ARMREST for rear seat backrest.

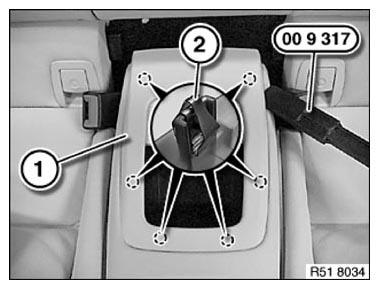

Apply special tool 00 9 317 at side and unclip trim (1) in upward direction from retaining clips (2).
Installation:
Clips (2) must not be damaged.
Replacement:

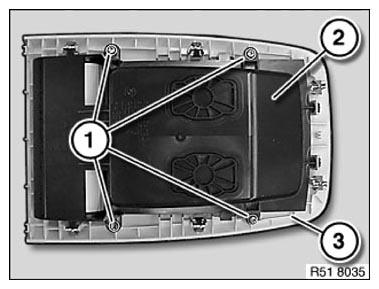

Release screws (1) and remove oddments tray (2) from trim (3).
