51 16 206 Removing and installing/replacing center armrest

Necessary preliminary tasks:

NOTE: Open center armrest otherwise spring (1) will be under too much tension.

Disengage spring (1) with screwdriver (2).

Installation:

Make sure spring (1) is correctly seated.

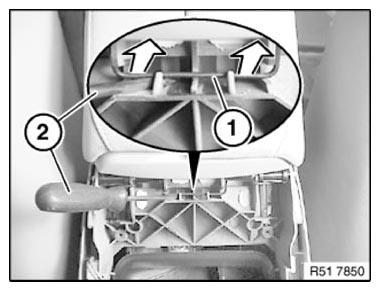

Fig 1: Disengaging Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Drive out hinge shafts (1).

NOTE: Hinge shafts (1) are secured on the outside with toothing (3).

Remove spring (2), open center armrest and feed out of storage compartment.

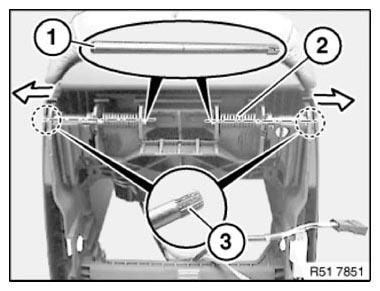

Fig 2: Removing Spring

Courtesy of BMW OF NORTH AMERICA, INC.
