51 41 000 Removing and installing left or right front door trim panel

Special tools required:

Necessary preliminary tasks:

Driver's side:

Passenger side:

Driver's side only:

Release screws (1).

Tightening torque 51 41 1AZ .

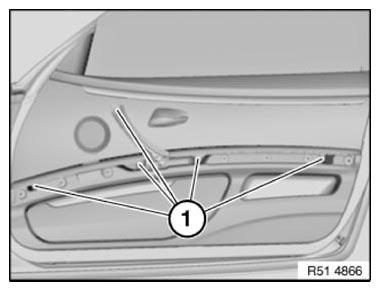

Fig 1: Identifying Front Door Trim Panel Screws - Driver Side

Courtesy of BMW OF NORTH AMERICA, INC.

Passenger side only:

Release screws (1).

Tightening torque 51 41 1AZ .

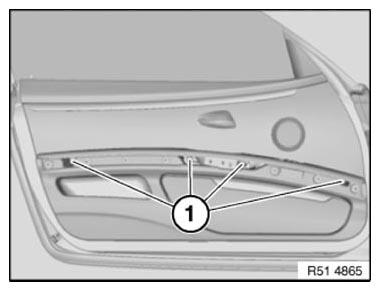

Fig 2: Identifying Front Door Trim Panel Screws - Passenger Side

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Start by unclipping door trim panel (1) at bottom.

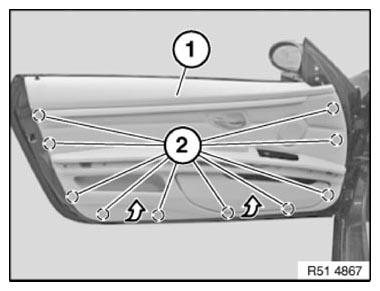

Release clips (2) for door trim panel (1) with special tool 00 9 317 .

Fig 3: Removing Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: On version with light package, pay attention to fibre-optic waveguide in area of door mirror.

Carefully unclip door trim panel (2) at top from retainers (1).

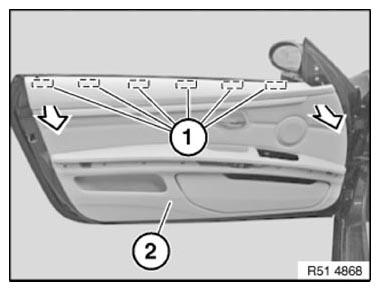

Fig 4: Unclipping Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook Bowden cable (1) from door lock (2).

Disconnect all plug connections/cable holders and remove door trim panel.

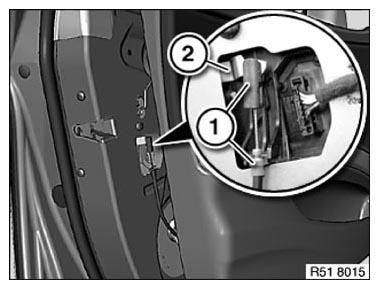

Fig 5: Identifying Bowden Cable From Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips.

Fit all clips with sealing ring.

Make sure clips are installed in correct position.

Grey clip
White clip
Red clip

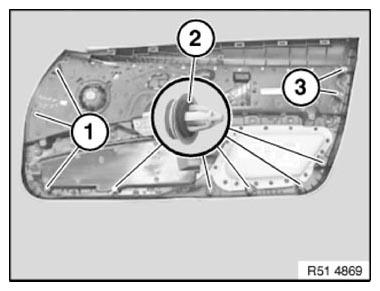

Fig 6: Identifying Front Door Clips
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:
