51 41 017 Removing and installing/replacing cover on front door handle (passenger side)

Special tools required:

• 00 9 317

Necessary preliminary tasks:

• Remove DECORATIVE STRIP  from front door (passenger side).

Lever out cover (1) with special tool 00 9 317 .

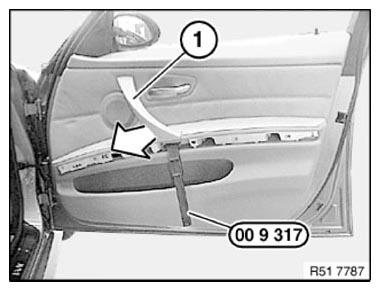

Fig 1: Removing Decorative Strip From Front Door (Passenger Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) of cover (2) must not be damaged.

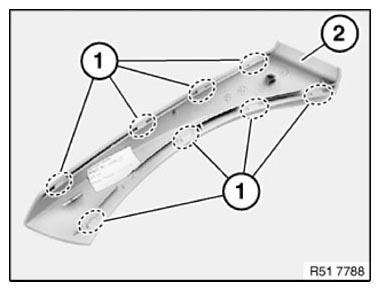

Fig 2: Identifying Front Door Handle Cover Catches

Courtesy of BMW OF NORTH AMERICA, INC.
