51 11 180 Removing and installing/replacing center grille for bumper trim

Necessary preliminary tasks:

• Remove FRONT BUMPER TRIM .

Release catches (1) and remove center grille (2).

Installation:

Catches (1) must not be damaged.

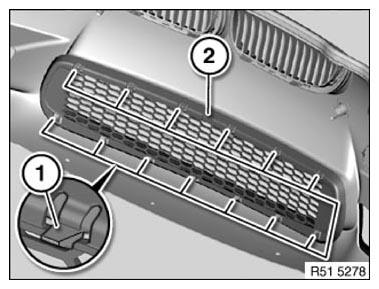

Fig 1: Identifying Catches And Center Grille

Courtesy of BMW OF NORTH AMERICA, INC.
