51 11 156 Removing and installing front bumper trim

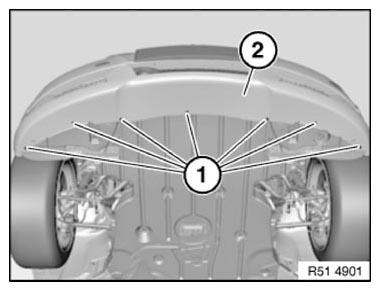

Release screws (1) on bumper trim (2).

Fig 1: Identifying Screws On Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

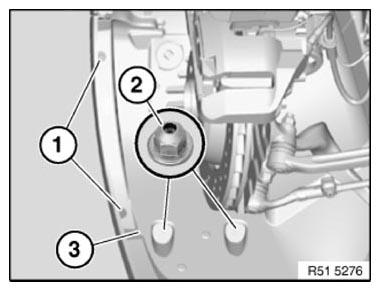

Release screws (1) and plastic nuts (2) on left wheel arch cover (3).

Lever out left wheel arch cover (3) at side.

Installation:

Make sure left wheel arch cover (3) is in correct position.

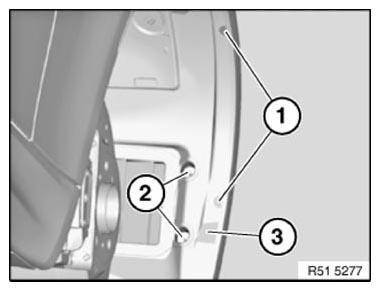

Fig 2: Identifying Screws, Plastic Nuts And Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 and 2) and remove right wheel arch cover (3).

Lever out right wheel arch cover (3) at side.

Installation:

Make sure right wheel arch cover (3) is in correct position.

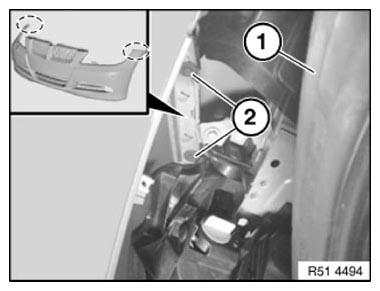

Fig 3: Identifying Screws And Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Press wheel arch cover (1) on left and right to one side.

Release left and right screws (2).

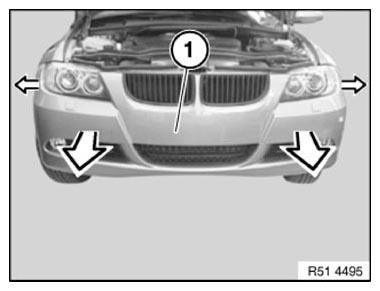

Fig 4: Identifying Wheel Arch Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on bumper trim (2).

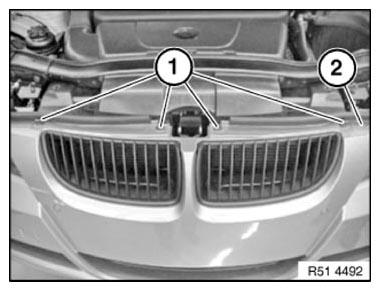

Fig 5: Identifying Screws On Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not damage bumper trim when pulling off.

Detach bumper trim (1) at sides.

Pull bumper trim (1) forwards slightly and if necessary disconnect plug connections on ultrasonic sensors.

Remove bumper trim (1) towards front with aid of a 2nd person.

Installation:

Height adjustment, refer to BODY GAP DIMENSIONS .
