51 13 047 Removing and installing (replacing) grille on side panel at front left or right

Special tools required:

WARNING: Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

Unlock catches (1) under side panel grille (2) with special tool 64 1 020 .

Unclip side panel grille (2) in direction of arrow from front side panel (3) and remove against direction of travel.

Disconnect plug connection (4).

Installation:

Make sure side panel grille (2) is correctly seated on front side panel (3).

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on side panel grille (2) must not be damaged.

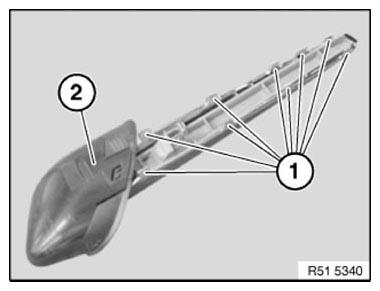

Fig 2: Identifying Catches On Side Panel Grille

Courtesy of BMW OF NORTH AMERICA, INC.
