51 16 383 Removing and installing/replacing damper for glovebox

Necessary preliminary tasks:

• Remove GLOVEBOX WITH HOUSING .

Open glovebox.

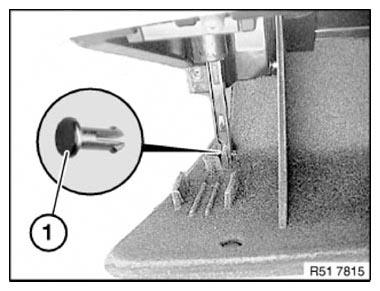

Release clip (1).

Fig 1: Identifying Glovebox Clip

Courtesy of BMW OF NORTH AMERICA, INC.

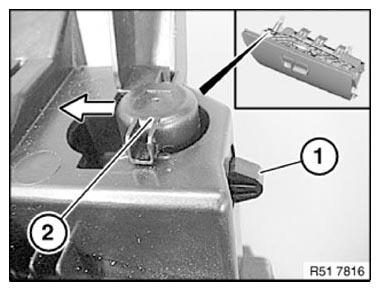

Press catch (1) together and slide damper (2) in direction of arrow.

Remove damper (2) in inward direction.

Fig 2: Pressing Damper Catch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

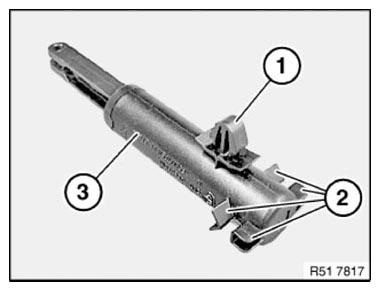

Catch (1) and guide (2) on damper (3) must not be damaged or missing.

Fig 3: Identifying Damper Catch And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
