51 16 366 Removing and installing right glovebox with housing

Necessary preliminary tasks:

Version with can holder:

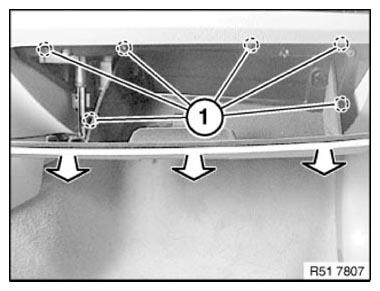

Release screws (1).

Pull out glovebox (1) slightly.

Fig 1: Pulling Out Glove Box

Courtesy of BMW OF NORTH AMERICA, INC.

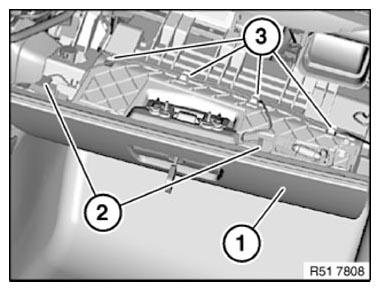

Disconnect plug connections (2) and feed cable out of guide (3).

Depending on version, disconnect further plug connections.

Remove glovebox (1).

Fig 2: Identifying Plug Connections, Guide And Glove Box

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

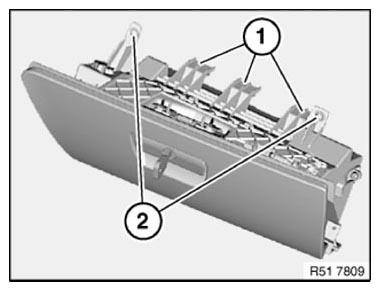

Guides (1) for glovebox must not be damaged or missing.

Version with can holder:

Guides (2) for cup holders must not be damaged or missing.

Fig 3: Identifying Guides For Glove Box And Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.
