51 16 201 Replacing storage compartment

Necessary preliminary tasks:

Version with telephone:

E93 only:

Release catches (2) and remove coin holder (1) in inward direction.

Release catches (3) and remove multifunction storage (4).

If necessary, remove AV CONNECTION SOCKET (5).

Remove socket (6).

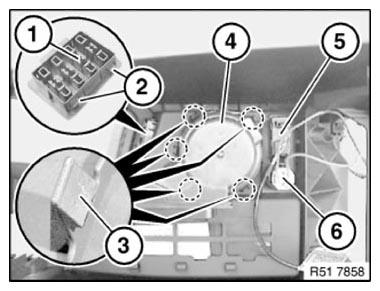

Fig 1: Identifying Catches, Multifunction Storage And Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Version with rear cabin air conditioning:

Release screws (1).

Lever out air duct (3) at catch (2) and feed upwards out of storage compartment.

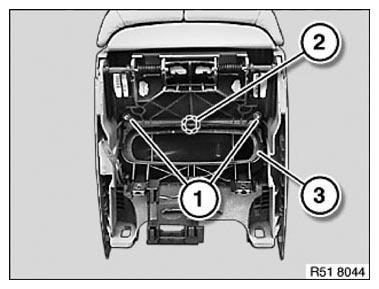

Fig 2: Identifying Screws And Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

First feed air duct (1) to right out of guide (2) and duct (3), then remove to left out of storage compartment.

Installation:

Seal (4) must not be damaged.

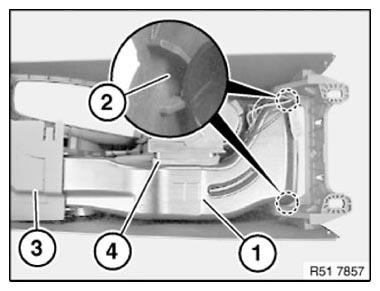

Fig 3: Identifying Air Duct, Guide And Seal
