51 71 380 Removing and installing/replacing vibration damper

Necessary preliminary tasks:

• Remove BATTERY .

Release screws (1) and remove battery carrier (2).

Tightening torque 51 71 14AZ .

Fig 1: Identifying Screws And Battery Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

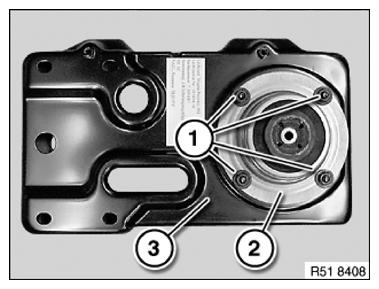

Release nuts (1) and remove vibration absorber (2) from battery carrier (3).

Tightening torque 51 71 15AZ .

Fig 2: Identifying Vibration Absorber From Battery Carrier And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
