51 11 055 Removing and installing/replacing support for front bottom bumper panel

Necessary preliminary work:

Remove impact absorber (1).

Mark top side on support (3).

Release screws (2) and remove support (3).

Tightening torque 51 11 5AZ .

Installation note:

Install support (3) with marked side towards top.

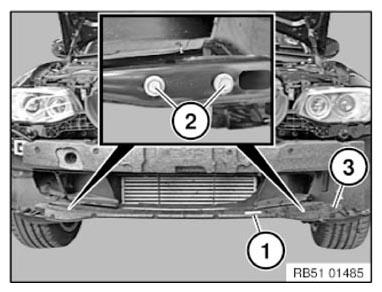

Fig 1: Identifying Impact Absorber, Support And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
