64 12 160 Removing and installing or replacing complete independent heater with bracket

WARNING: Risk of scalding!

Only perform the following repair work on an engine that has cooled down.

NOTE: Clamp off coolant hoses on independent heater.

Recycling:

Fuel escapes when fuel line is detached. Have a suitable collecting vessel ready.

Catch and dispose of escaping fuel.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks:

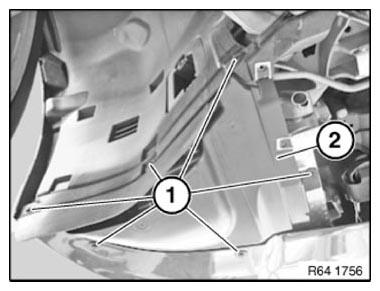

Release screws (1).

Remove lower left cover (2).

Fig 1: Identifying Lower Left Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

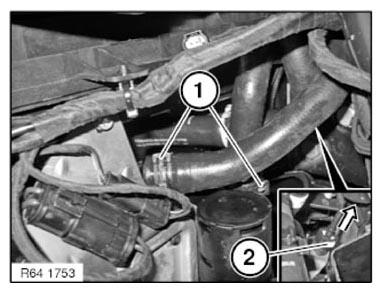

Release spring clamps (1) and detach coolant hoses.

Installation note:

Unlock and detach fuel line (2).

Fig 2: Identifying Fuel Line And Spring Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

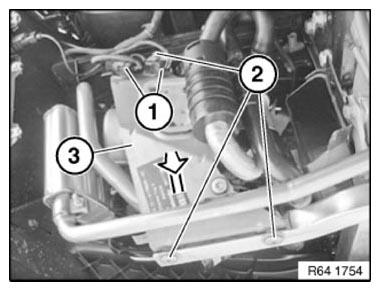

Unlock plug connections (1) and disconnect.

Unfasten screws (2).

Lower independent heater (3).

Installation note:

Make independent heater (3) is correctly seated.

Fig 3: Disconnecting Independent Heater Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

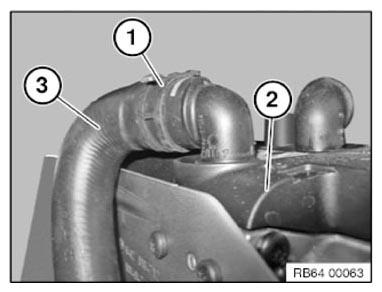

Release spring strap (1) and detach coolant hose (3).

Remove independent heater (3).

Fig 4: Identifying Independent Heater, Spring Strap And Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

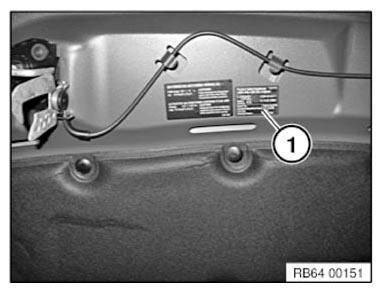

Until 09/2012, replace for diesel engines duplicate type label (1).

Fig 5: Identifying Diesel Engines Duplicate Type Label

Courtesy of BMW OF NORTH AMERICA, INC.
