61 71 030 Removing and installing/renewing all washer jets of windscreen washer system

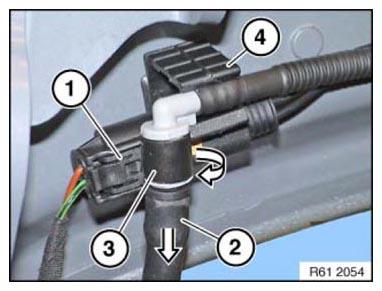

Turn clamp (3) in direction of arrow and washer fluid line (2) in direction of arrow.

Disconnect plug connection (1) and remove from holder (4).

Fig 1: Turning Washer Fluid Line Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

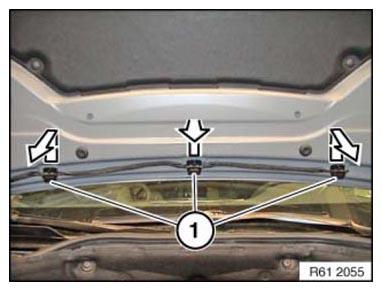

Press all washer jets (1) in direction of arrow upwards and remove.

Fig 2: Pressing Washer Jets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

• Retaining lugs (1) must not be damaged.
• Check ADJUSTMENT OF WASHER JETS  and correct if necessary.
• Observe FILLING CAPACITY FOR WINDSCREEN WASHER SYSTEM .

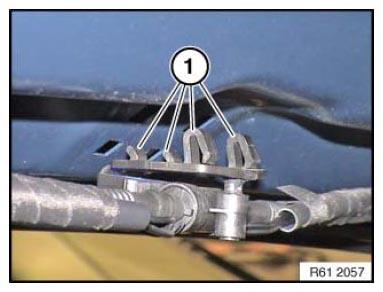

  Fig 3: Identifying Retaining Lugs

  Courtesy of BMW OF NORTH AMERICA, INC.
