61 71 004 Adjusting washer jets for windscreen washer system

Triple nozzle system

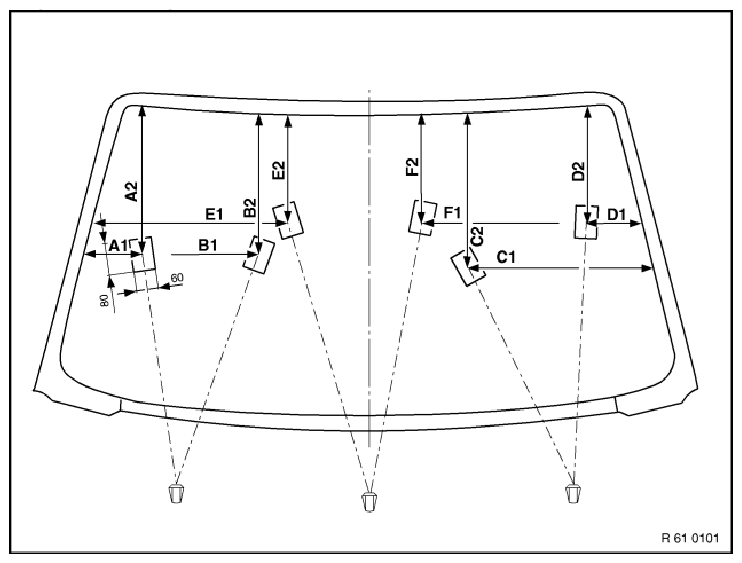

Fig 1: Identifying Washer Spray Jet Adjusting Values (Triple Nozzle System)

Courtesy of BMW OF NORTH AMERICA, INC.

The spray jets should hit the middle of the wiping area.

Adjustment values in mm

A1= 200
A2= 400
B1= 400
B2= 400
C1= 450
C2= 450
D1= 230
D2= 350
E1= 500
E2= 350
F1= 550
F2= 350

NOTE: If necessary, remove adhesive residue from windscreen.
Fill up with washer fluid.

NOTE: Washer jets are preset; in case of customer complaint, the setting can be adjusted as needed.
Changes in the setting must take into account the possible driving situations (high/low speed; with/without washing additive) and must be performed with care.

If necessary, adjust left/right or middle washer jet (1) by way of screw (2).

Fig 2: Identifying Washer Jet With Screw

Courtesy of BMW OF NORTH AMERICA, INC.
