62 11 280 Removing and installing/replacing instrument panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Comply with notes on protection against electrostatic damage (ESD PROTECTION ).

Necessary preliminary tasks:

Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
Move steering column completely rearwards
If necessary, tape off cover to protect against damage

Version with instrument panel in leather:

During installation and removal tool combinations can damage the leather of the instrument panel.

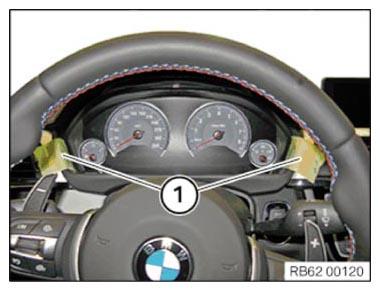

In order to prevent damage, yellow plastic adhesive tape (1) must be stuck on the left and right sides of the instrument panel.

Fig 1: Identifying Instrument Panel Adhesive Tape Applying Area

G10168209

Courtesy of BMW OF NORTH AMERICA, INC.

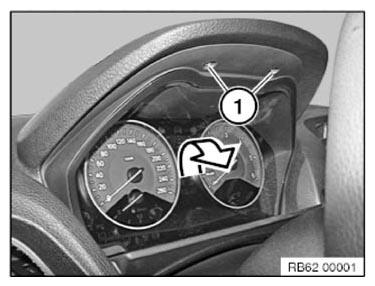

Release screws (1).

Tightening torque 62 11 1AZ .

Pry out instrument panel in direction of arrow.

Fig 2: Removing Instrument Panel

G10098671

Courtesy of BMW OF NORTH AMERICA, INC.

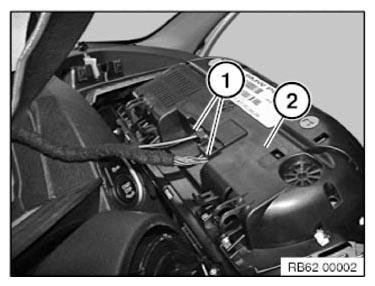

Detach plug connection (1) and remove instrument panel (2).

Fig 3: Identifying Instrument Panel Plug Connection

G10098672

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

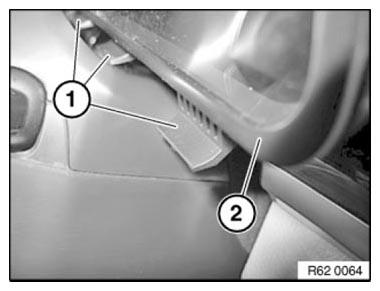

Retaining tabs (1) of dashboard (2) must be exactly seated in mountings of dashboard.

Fig 4: Identifying Dashboard With Tabs

G06886070

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .

Check values for Condition Based Service (CBS) and correct if necessary.
