52 26 420 Replacing backrest cover for left rear seat (through-loading facility)

Special tools required:

• 52 0 050

Necessary preliminary tasks:

• Remove REAR SEAT BACKREST , left
• Remove GUIDE SLEEVES

Remove sleeve (1) from shaft.

Fig 1: Sleeve Of Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

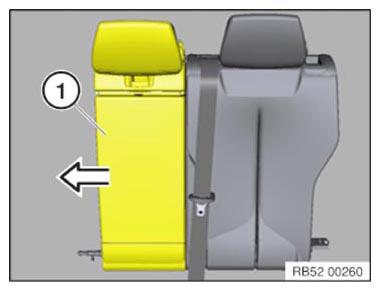

Remove backrest for center rear seat (1) from support of left backrest in direction of arrow.

Fig 2: Removing Backrest For Center Rear Seat From Support Of Left Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Plastic bush (1) may slide when removing the center backrest.

Make sure plastic bush (1) is fitted correctly in the backrest frame.

Fig 3: Plastic Bush

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sleeve (1).

Fig 4: Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip lock finisher (1) in direction of arrow (2) starting with backrest side section.

Remove lock finisher (1) in direction of arrow (3).

Fig 5: Removing Lock Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) and (2) of cover must not be damaged.

Replace faulty cover.

Fig 6: Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Insert plastic wedge from outside between trim (1) and lock.

Carefully raise outer side of cover (1) with plastic wedge upwards out of catch.

Raise inner side of cover (1) with plastic wedge out of catch.

Remove trim upwards.

Fig 7: Inserting Plastic Wedge From Outside Between Trim And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Tightening torque: 52 26 07AZ .

Lift out trim.

Fig 8: Lifting Out Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Feed seat belt strap out of cover.

Fig 9: Feeding Seat Belt Strap Out Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 52 26 03AZ .

Remove outer mount (2).

Installation note:

Replace screw (1).

Fig 10: Outer Mount And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out welt in marked area from backrest frame.

Remove backrest cover with padding from backrest frame.

Fig 11: Removing Backrest Cover From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and upholstery:

• Release all clamps on trim wires.
• Remove cover from upholstery
• Remove remaining clamps from cover and upholstery
  Fig 12: Cover And Upholstery

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Trim wire in backrest cover
5. Backrest cover
   Fig 13: Inserting Retainer With Special Tool (52 0 050)

   Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

• Remove all trim wires from cover
• If necessary, cut pockets in new cover for trim wires
• Push trim wires into cover pockets
  Fig 14: Cover And Upholstery

  Courtesy of BMW OF NORTH AMERICA, INC.
