52 26 011 Removing and installing/replacing backrest for left rear seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove ARMREST SIDE SECTION
- Unclip REAR SEAT and lay down towards front
Release screw (1).
Installation note:
Replace screw (1).
Tightening torque: 52 26 01AZ .

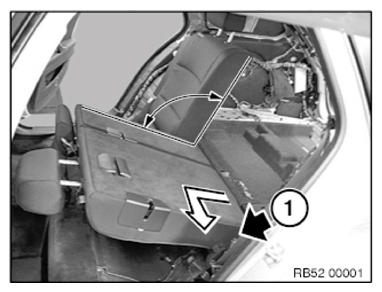

- Tilt backrest slightly forwards.
- Pull backrest forwards and outwards out of center mount
Installation note:
The plastic bush (1) in the right backrest frame may slide during removal of the left backrest.
Make sure plastic bush (1) is fitted correctly in the right backrest frame.
The plastic bush (1) must be retained in the backrest frame.
If applicable, clip the plastic bush (1) in from the outside in.
