52 26 400 Replacing seat cover for rear seat

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks:

Remove REAR SEAT

Unclip ISOFIX cover cap.

Installation note:

Pull cover straps through foam part into Isofix openings.

Make sure Isofix protective caps are correctly engaged.

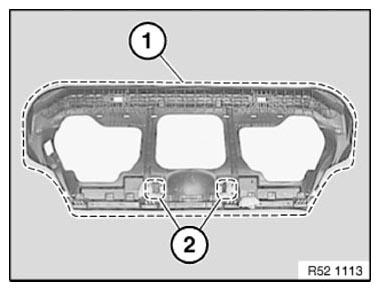

Fig 1: Isofix Protective Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out welt in area (1) with plastic wedge.

Unhook seat cover in area (2).

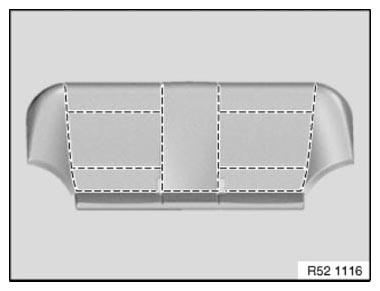

Fig 2: Welt Area And Seat Cover Unhooking Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and upholstery:

Release all clamps on trim wires.
Remove seat cover from upholstery
Remove remaining clamps from cover and upholstery

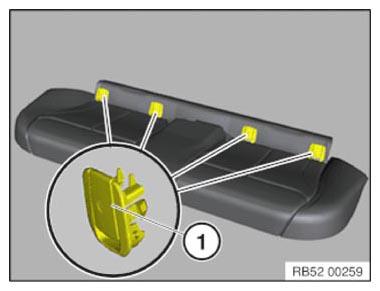

Fig 3: Retainers Location
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert new clamps with special tool 52 0 050.

Upholstery
Clamp
Trim wire in upholstery
Trim wire in seat cover
Seat cover

Fig 4: Inserting Retainer With Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Push trim wires into new seat cover
If necessary, cut in mounting for trim wires of new cover

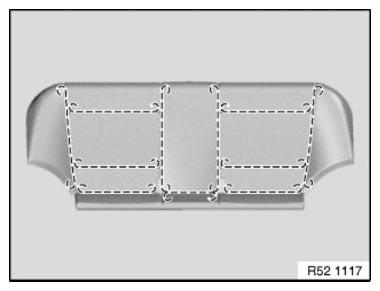

Fig 5: Trim Locations On Seat Cover
Courtesy of BMW OF NORTH AMERICA, INC.
