52 26 081 Removing and installing/replacing backrest frame for center rear seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove the center BACKREST COVER
- Remove middle REAR SEAT BACKREST SEAT BELT BUCKLE

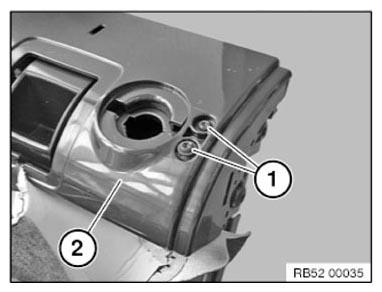

Release screws (1).
Remove the actuating unit (2).
Installation note:

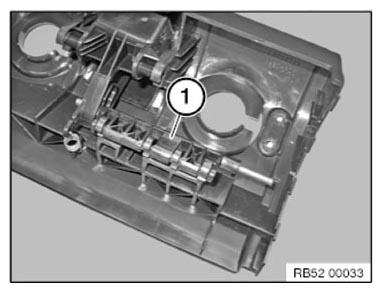

Make sure unlocking rod (1) is correctly seated in the operating unit.
