52 26 315 Removing and refitting/replacing lock for center rear seat backrest
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Unclip trim cover for lock with a plastic wedge.
Move trim cover for lock a little towards the middle.
Detach trim cover for lock by pulling towards rear.
Installation note:
Retaining lugs on the trim cover for the lock must not be damaged.
Replace defective trim cover for lock.

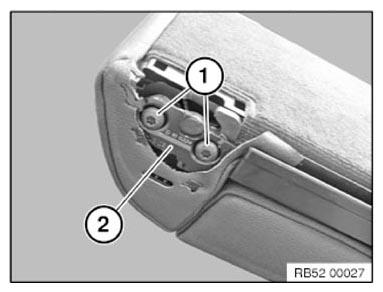

Release screws (1) and feed lock (2) out of rear seat backrest.
Tightening torque: 52 26 06AZ .
Installation note:

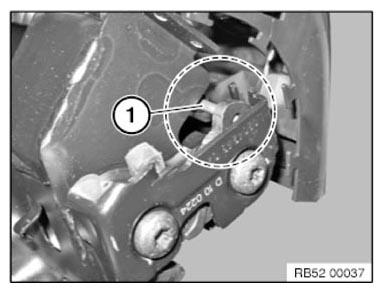

Make sure operating rod (1) is correctly seated in the lock.
Run a function check.
