67 31 520 Removing and installing/replacing seat height adjustment drive unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove driver's or front passenger seat. See 52 13 001 Removing and installing front seat, driver's side (normal/manual) , 52 13 002 Removing and installing the front seat on the passenger's side (normal/manual) , 52 14 001 Removing and installing left or right front seat, driver's side, (normal/electric) or 52 14 002 Removing and installing front seat (normal/electric) on the passenger's side from left or right .

Set down front seat sideways on a suitable surface.

Unfasten plug connection (1) and disconnect.

Release screws (3).

Tightening torque: 67 31 1AZ .

Feed out seat height adjustment drive unit (2) and remove.

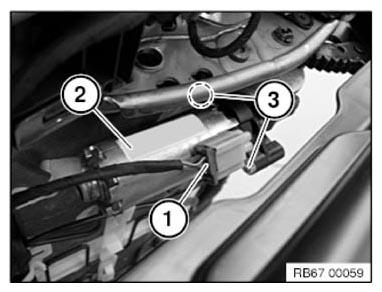

Fig 1: Seat Height Adjustment Drive Unit, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out a function check.

Replacement:

INITIALIZE seat height adjustment drive unit.
