65 13 050 Removing and installing/replacing speaker (tweeter in mirror triangle)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COVER ON DOOR HANDLE
Partially remove FRONT DOOR TRIM PANEL
DETACH cover on door window frame in front area.

Feed out resistor (2) with cable.

Remove foam wedge (1).

Fig 1: Identifying Foam Wedge, Resistor With Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip speakers (1) from latch mechanisms (2).

Remove associated plug connection and remove speaker (1).

Installation note:

Latch mechanisms (2) must not be damaged.

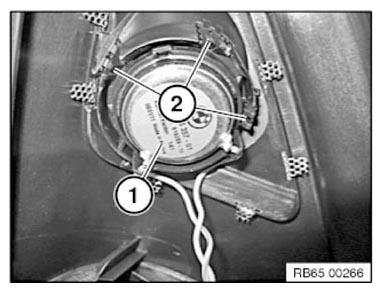

Fig 2: Identifying Speaker And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
