65 77 580 Removing and installing (replacing) front seat position sensor on left or right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Note AIRBAG SAFETY REGULATIONS
!
Incorrect handling can activate airbag and cause injury.
Incorrect handling can activate airbag and cause injury.
Necessary preliminary tasks:
- Remove front seat. See 52 13 001 REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE (NORMAL/MANUAL) , 52 13 002 REMOVING AND INSTALLING THE FRONT SEAT ON THE PASSENGER'S SIDE (NORMAL/MANUAL) , 52 14 001 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT, DRIVER'S SIDE, (NORMAL/ELECTRIC) or 52 14 002 REMOVING AND INSTALLING FRONT SEAT (NORMAL/ELECTRIC) ON THE PASSENGER'S SIDE FROM LEFT OR RIGHT .

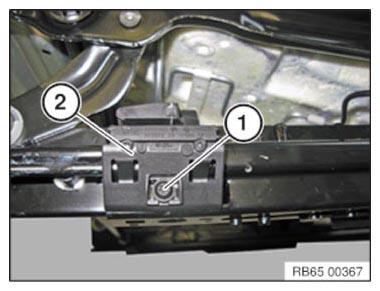

Release screw (1).
Take off position sensor (2).
Installation note:
Make sure position sensor (2) is correctly fitted.
