64 11... Replacing retaining ring for condensation drain hose

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Necessary preliminary tasks:

Remove heater/air conditioner . See 64 11 206 REMOVING AND INSTALLING/REPLACING HEATING AND AIR-CONDITIONING UNIT (N20, N26) or 64 11 206 REMOVING AND INSTALLING/REPLACING HEATING AND AIR-CONDITIONING UNIT (N47)

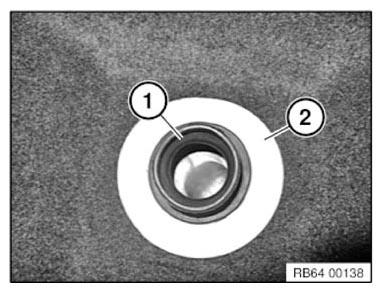

Press out condensation drain hose (1) from retaining ring (2) towards bottom.

Fig 1: Identifying Condensation Drain Hose And Retaining Ring

G10098884

Courtesy of BMW OF NORTH AMERICA, INC.

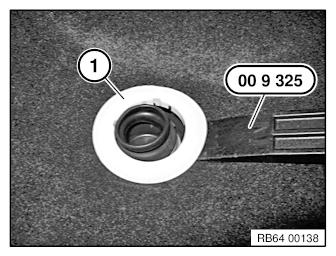

Remove retaining ring (1) with special tool 00 9 325 .

Fig 2: Removing Retaining Ring With Special Tool (00 9 325)

G10143896

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

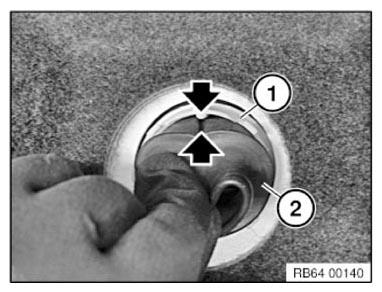

Guide of bottom retaining ring (1) must fit correctly in recess of condensation drain hose (2).

Fig 3: Fitting Guide Of Bottom Retaining Ring In Condensation Drain Hose

G10098886

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

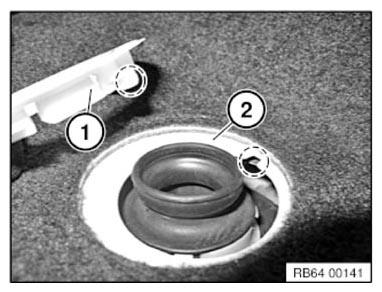

Guide on top retaining ring (1) must fit correctly in recess on body (2).

Fig 4: Fitting Guide On Top Retaining Ring In Recess On Body

G10098887

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

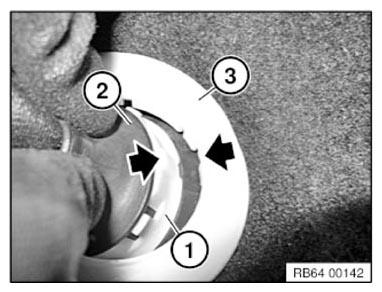

Guide on bottom retaining ring (1) must be inserted correctly in recess on top retaining ring (3).

Make sure condensation drain hose (2) is correctly fitted in top retaining ring (3).

Fig 5: Fitting Drain Hose Pipe In Top Retaining Ring

G10098888

Courtesy of BMW OF NORTH AMERICA, INC.
