64 11... Replacing condensation water drain hose of heating and air conditioning system

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove intake filter housing . See 13 71 000 REMOVING AND INSTALLING/REPLACING INTAKE SILENCER HOUSING (N47 D16/20 K/U/O/T 1) or 13 71 000 REMOVING AND INSTALLING/REPLACING THE INTAKE SILENCER HOUSING (N20, N26)
Release left charge air duct . See 11 61 365 REMOVING AND INSTALLING/REPLACING LEFT-HAND CHARGE AIR DUCT (N20, N26) or 11 61 350 REMOVING AND INSTALLING/RENEWING PRESSURE PIPE AT THROTTLE BODY (N47D20 K/U/O/T 1) at throttle valve
Partially release propeller shaft . See 26 11 000 COMPLETELY REMOVING AND INSTALLING PROPELLER SHAFT (INSERTED - REAR FLEXIBLE DISC) (WITHOUT VIBRATION ABSORBER) or 26 11 000 REMOVING AND REFITTING COMPLETE PROPELLER SHAFT (PUSH-FIT - FLEXIBLE JOINT AT REAR) (WITH VIBRATION ABSORBER)
- Disconnect propeller shaft at transmission.
- Release center mount.
- Tie up the propeller shaft to the vehicle underbody.
  NOTE: A too high deflection angle on the propeller shaft can cause preliminary damage to the joint/propeller shaft!

NOTE: Picture for example purposes.

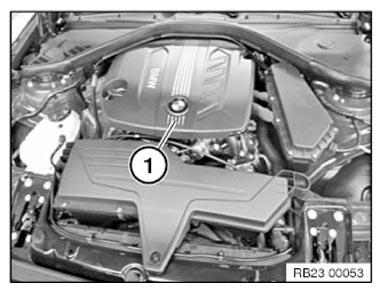

Remove acoustic cover (1).

Fig 1: Removing Acoustic Cover

G10098871

Courtesy of BMW OF NORTH AMERICA, INC.

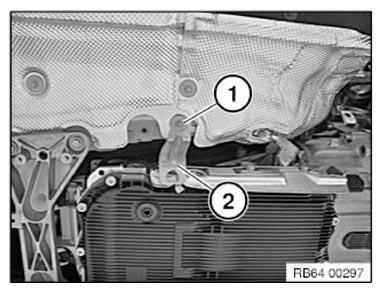

Slacken nut (1).

Take off holder (2).

Fig 2: Identifying Nut And Holder

G10098872

Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission:

Support transmission with special tools 23 4 050 , 00 2 030 .

Secure transmission to mounting with tensioning strap (1).

Fig 3: Supporting Transmission With Special Tools (23 4 050, 00 2 030)

G05758007

Courtesy of BMW OF NORTH AMERICA, INC.

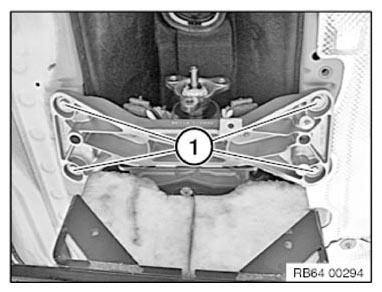

Release screws (1).

Tightening torque 22 32 3AZ .

Slightly lower the transmission.

Fig 4: Identifying Screws

G10098874

Courtesy of BMW OF NORTH AMERICA, INC.

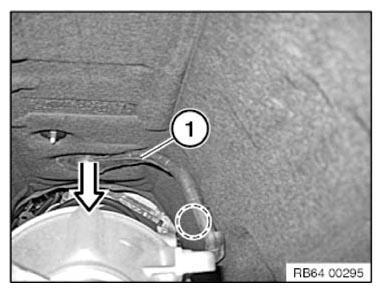

Release condensation water drain hose (1) in marked area and remove in direction of arrow.

Installation note:

Firstly secure condensation water drain hose (1) in marked area then lock it by turning slightly to left and right top.

Fig 5: Releasing Condensation Water Drain Hose

G10098875

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

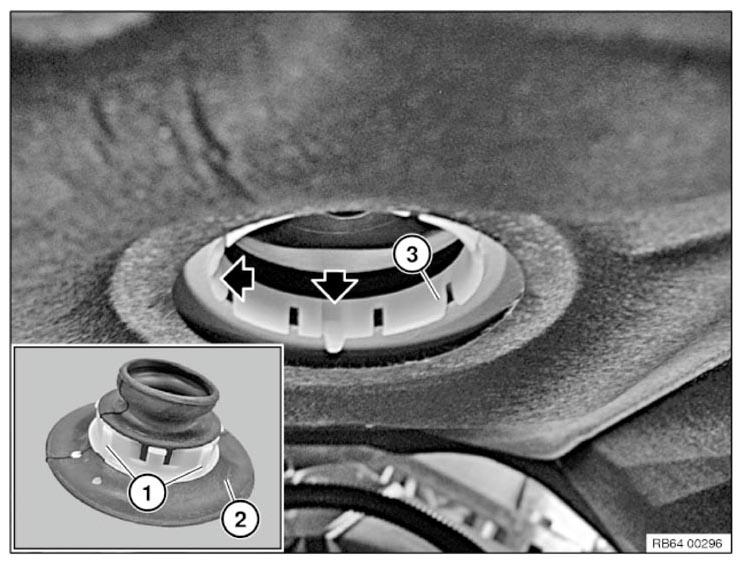

Guides (1) on condensation water drain hose (2) must be inserted exactly at marked points in retaining ring (3).

Make sure condensation water drain hose (2) is correctly fitted.

Fig 6: Identifying Guides, Drain Hose And Marked Points In Retaining Ring

G10098876

Courtesy of BMW OF NORTH AMERICA, INC.
