64 12 670 Replacing electric auxiliary heater - front-

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTER CONSOLE .
Remove GLOVE BOX

Remove air duct (1) and sound insulation (2) in direction of arrow.

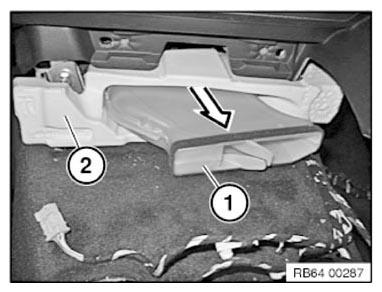

Fig 1: Removing Air Duct And Sound Insulation

G10097427

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up the carpet (3) as shown.

Slacken nut (1).

Remove ground cable (2).

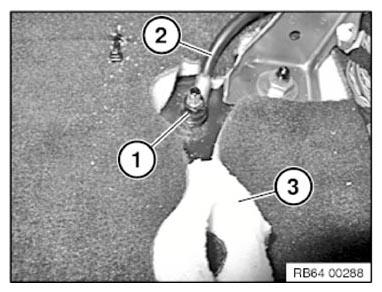

Fig 2: Removing Ground Cable

G10098890

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Mark position before removing holder (2).

Release screws (1).

Take off holder (2).

Fig 3: Identifying Screws And Holder

G10098868

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip air duct (1) downward at retaining clasp (2).

Pull off air duct (1) in direction of arrow.

Installation note:

Air duct (3) must be correctly engaged in duct (4).

Fig 4: Pulling Off Air Duct

G10098869

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) and (2).

Release screws (3).

Auxiliary heater (4) in direction of arrow.

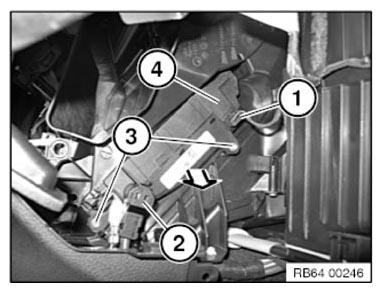

Fig 5: Disconnecting Auxiliary Heater

G10098893
