84 10 810 Removing and installing (replacing) Telematic Communication Box

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe the INFORMATION ON PROTECTION FROM ELECTROSTATIC DISCHARGE .

Comply with notes and instructions on HANDLING OPTICAL FIBRE .

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD

Lift luggage compartment floor trim panel (1) by the handle (2).

Remove luggage compartment floor trim panel (1) in direction of arrow.

Fig 1: Removing Luggage Compartment Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Open storage tray of luggage compartment floor (1) in direction of arrow.

Remove front luggage compartment floor storage tray (1).

Fig 2: Removing Front Luggage Compartment Floor Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect all connectors (1).

Unscrew nuts (2).

Tightening torque: 6.0 Nm.

Remove TCB (3).

Installation note:

Note colour coding of connector.

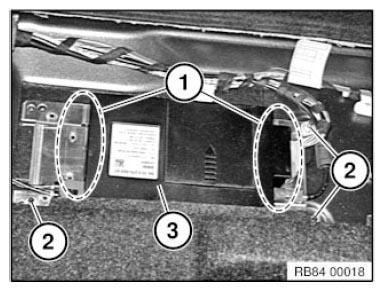

Fig 3: Identifying Telematic Communication Box Connectors And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When replacing the TCB, check whether the faulty TCB is equipped with an EMERGENCY BATTERY :

if no , then the new part is installed without an emergency battery !
if yes, , then the new part should be equipped with a new emergency battery (ordered separately, TCB is supplied without an emergency battery!)

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
