84 10 800 Removing and installing/replacing Combobox

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrical damage (ESD PROTECTION) .

Comply with notes and instructions on HANDLING OPTICAL FIBRE .

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD

Raise luggage compartment floor trim panel (1) at handle (2) and remove in direction of arrow.

Fig 1: Removing Luggage Compartment Floor Trim Panel

G10153899

Courtesy of BMW OF NORTH AMERICA, INC.

Open storage tray in luggage compartment floor at front (1) in direction of arrow and remove.

Fig 2: Removing Front Luggage Compartment Floor Storage Tray

G10167948

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Unscrew nuts (2).

Tightening torque: 6.0 Nm.

Remove Combox (3).

Installation note:

Note colour coding of plug connection.

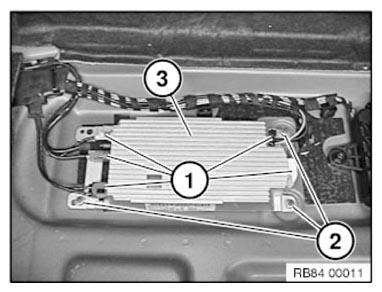

Fig 3: Identifying Combox, Plug Connections And Nuts

G10099257

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING

For vehicles with Teleservices optional equipment:

Update services via menu in the central information display.
