63 99 072 Replacing halogen bulb for headlight on left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

Unlock and remove cover (1).

Fig 1: Removing Front Bumper Panel Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Turn protective cap (1) counterclockwise and remove.

IMPORTANT: Risk of damage due to moisture penetration!
Installation note:
Check seal. Replace protective cap (1) if necessary.
Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .
Protective cap (1) must lock correctly!
Turn the protective cap (1) clockwise to end stop (A)!

Fig 2: Turning Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Similar to graphic.

Remove bulb holder (1) towards rear from headlight (2).

Installation note:

Make sure bulb holder (1) is correctly seated in headlight (2).

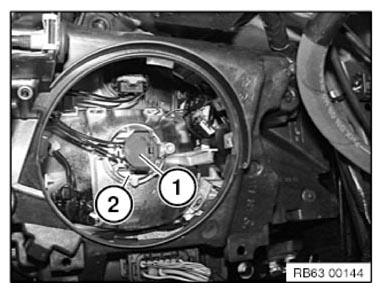

Fig 3: Identifying Bulb Holder And Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Detach bulb holder (1) from bulb (2).

Fig 4: Detaching Bulb Holder From Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Note BULB TYPE .

Recommendation:

Check HEADLIGHT ADJUSTMENT , correct if necessary.
