63 10 004 Adjusting headlights
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
COMPLY with test prerequisites for headlight adjustment.
IMPORTANT:
Do not damage adjusting screws when adjusting headlights.

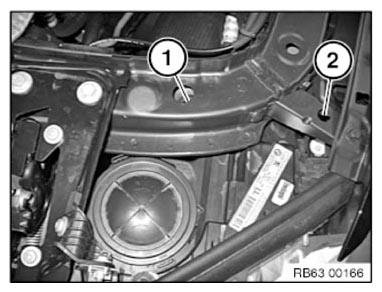

Carry out headlight adjustment at adjusting screws (1) and (2).
- Adjusting screw primarily for vertical adjustment
- Adjusting screw primarily for lateral adjustment
After headlight adjustment:
Perform reference run. For this purpose, switch off and on the headlights. Check again headlight adjustment.
