63 31 000 Removing and installing/replacing complete interior roof light (front)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTING) .

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .

Necessary preliminary tasks:

Only version with roof switch cluster:

Remove ROOF SWITCH CLUSTER

For interior roof light equipment:

Carefully lever out interior roof light (1) with special tool 00 9 325 in direction of arrow.

Unlock and disconnect associated plug connection, remove interior roof light (1).

Installation note:

Make sure interior roof light (1) is correctly seated.

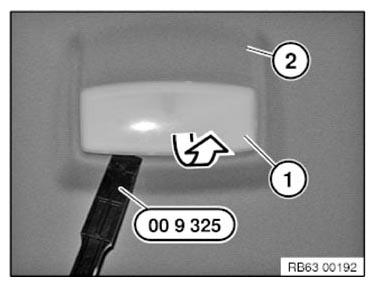

Fig 1: Removing Interior Roof Light

Courtesy of BMW OF NORTH AMERICA, INC.

For roof switch cluster equipment:

Release interior roof light (1) at clamps (2) and feed out of roof switch cluster (3).

Installation note:

Clips (2) must not be missing or damaged.

Make sure interior roof light (1) is correctly seated in roof switch cluster (3).

Fig 2: Identifying Interior Roof Light, Clamps And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, convert BULB .
Note BULB TYPE
