63 12 870 Replacing ignition unit for left xenon headlight

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Unlock and remove cover (1).

Fig 1: Removing Left Xenon Headlight Ignition Unit Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Work shown on the F20 by way of example, deviations in detail are possible in other models.

Turn protective cap (1) to the left and remove.

Fig 2: Turning Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage due to moisture penetration!
Installation note:
Check seal. Replace protective cap (1) if necessary.
Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .
Protective cap (1) must lock correctly!
Turn the protective cap (1) to the right to end stop (A)!

Disconnect plug connection (1) on ignition device with bulb (2).

Remove ignition device with bulb (2) in direction of arrow.

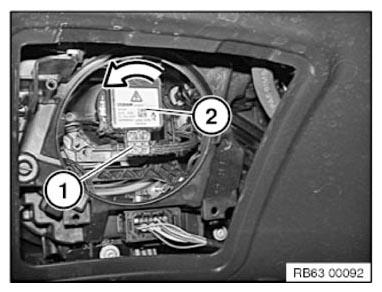

Fig 3: Removing Ignition Device With Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Recommendation:

Check HEADLIGHT ADJUSTMENT , correct if necessary.
