63 17 070 Removing and installing/replacing left fog light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS)

Necessary preliminary tasks:

Version with left wheel arch auxiliary radiator:

Partially release auxiliary radiator

On all other versions:

Partially release WHEEL ARCH COVER FRONT (FRONT SECTION)

Only on version without auxiliary radiator:

Fold wheel arch cover (1) back.

Unfasten plug connection (2) and disconnect.

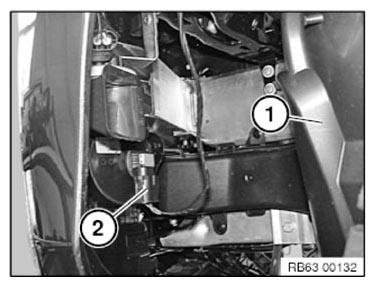

Fig 1: Identifying Wheel Arch Cover And Plug Connection

G10098743

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release nut (2) and remove fanfare (3).

Fig 2: Identifying Fanfare, Plug Connection And Nut

G10098570

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 63 12 2AZ .

Remove fog light (2) out of bumper panel (3) in direction of arrow.

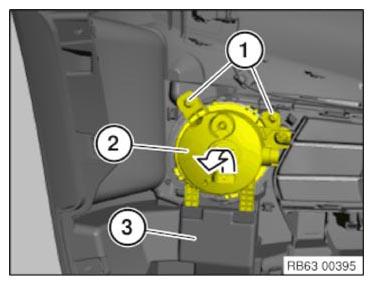

Fig 3: Removing Fog Light

G10098745

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guides (1) on fog light (2) must not be damaged or missing.

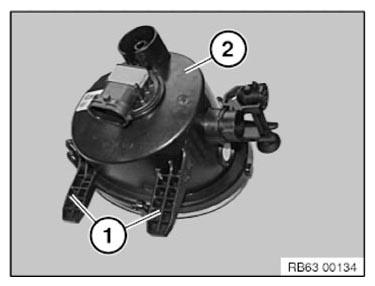

Fig 4: Identifying Fog Light Guides

G10098746

Courtesy of BMW OF NORTH AMERICA, INC.

On replacement of fog light or bumper panel at front:

If necessary, remount BULB
Adjust FOG LIGHTS
