63 10 014 Adjusting fog lights
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Comply with TEST PRECONDITIONS FOR HEADLIGHT ADJUSTMENT .
IMPORTANT:
Do not damage adjusting screw when adjusting fog light.
NOTE:
Work shown on the F20 by way of example, deviations in detail are possible in other models.

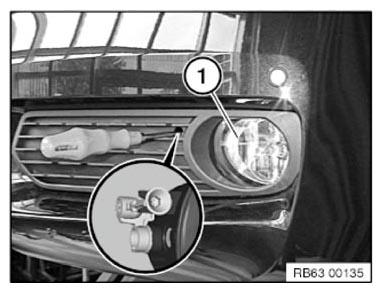

Adjust fog light (1) by turning adjusting screw.
