63 14 140 Replacing rear reflector (from 05/2013)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

REMOVE REAR BUMPER PANEL

NOTE: In vehicles produced from 05/2013, the rear reflector can no longer be removed without destroying it.

Release the latch mechanism (1) on the rear reflector (2), and remove from the bumper panel (3) in the direction of the arrow.

Installation note:

Make sure replacement rear reflector (2) is correctly fitted in bumper panel (3).

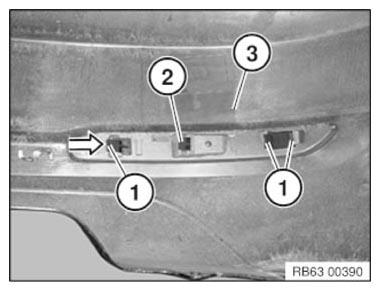

Fig 1: Releasing Latch Mechanism On Rear Reflector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) and guides (2) on replacement rear reflector (3) must not be damaged or missing.

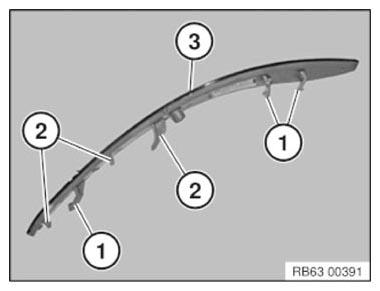

Fig 2: Identifying Latch Mechanisms And Guides On Rear Reflector

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: In the following national-market versions, component (1) on the back of the bumper panel must be removed before the replacement rear reflector can be installed:

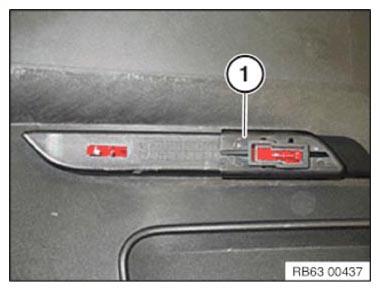

Fig 3: Identifying Bumper Panel Back Component

Courtesy of BMW OF NORTH AMERICA, INC.

India
China
Korea
Gulf States

Component (1) is bonded.
