66 31 006 Removing and installing (replacing) ACC sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove the SUPPORT FOR THE FRONT BOTTOM BUMPER PANEL

Release screws (3).

Tightening torque 66 31 1AZ .

Remove ACC sensor (1) from holder (2).

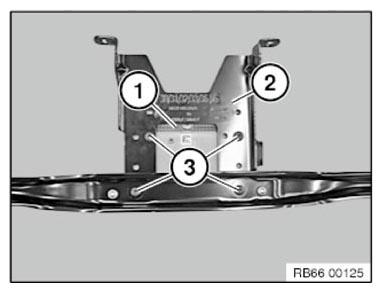

Fig 1: Identifying ACC Sensor, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

If applicable, ADJUST THE ACC SENSOR

Replacement:

Carry out VEHICLE PROGRAMMING AND ENCODING
ADJUSTING ACC SENSOR
