13 62 668 Removing and installing/replacing diesel particulate sensor (N47 D20 O 1 with SCR)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 7 020

WARNING: Risk of burning!
Only perform this repair work on an engine that has cooled down.

Necessary preliminary tasks:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Remove EXHAUST SYSTEM .
Remove heat shield at rear.
Partially detach front heat shield.

Detach particulate control sensor (1) and remove from exhaust system.

Tightening torque 13 62 14AZ .

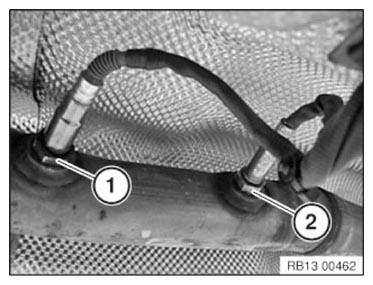

Fig 1: Identifying Exhaust System Particulate Control Sensor

G10102687

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) and remove.

Unscrew nuts (2).

Tightening torque 13 62 15AZ .

Maneuver out particular control sensor and control unit for particulate control sensor and remove.

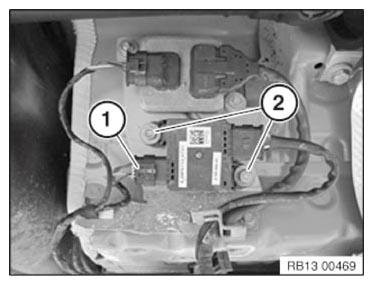

Fig 2: Identifying Particular Control Sensor Connector And Control Unit

G10102688

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check stored error/fault messages.

Clear diagnostic fault entries from fault memory.
